Suitable for use with clean water even where air is presentand with liquids that are not chemically aggressive towards the materials from which the pump is made.
The pumps are designed to pump water even in cases whereair is present. As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 9m
Continuous duty
Pump body: Cast iron+stainless steel
Motor support: Cast iron
Motor housing: Aluminum
Impeller: PPO, AISI 304 if request
Shaft: 45#Steel, AISI 416 stainless steel if request
Mechanical seal: Carbon/Ceramic
Single phase 220V-230V/50Hz
Single phase 110V-127V/60Hz if request
Single/three phase 220V/60Hz if request
Two-pole induction motor
Insulation Class B, Class F if request
Protection IP44, IP54 if request

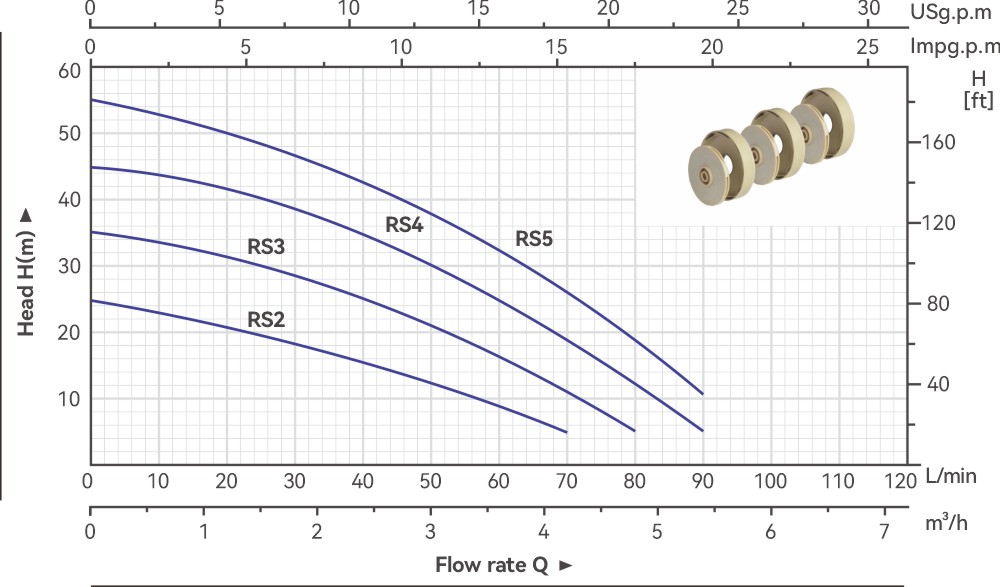

| Performance Parameters | ||||||||||||||
| Model | INPUT POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 2.1 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | ||
| kW | HP | Q(L/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | ||
| RS2 | 0.5 | 0.6 | H(m) | 25 | 23 | 21 | 18 | 15 | 12 | 8 | 5 | - | - | |
| RS3 | 0.6 | 0.8 | 35 | 33.5 | 31 | 28.5 | 25.5 | 21.5 | 16.5 | 11 | 5 | - | ||
| RS4 | 0.75 | 1 | 45 | 43.5 | 41 | 38.5 | 35 | 30.5 | 25.5 | 19.5 | 12.5 | 5 | ||
| RS5 | 0.9 | 1.25 | 55 | 52.5 | 49.5 | 46.5 | 42.5 | 38 | 32 | 25 | 18 | 10.5 | ||
| Model | INLET/OUTLET | N.W | L×W×H |
| (Inch) | (Kg) | (mm) | |
| RS2 | 1"×1 " | 11.4 | 385×215×230 |
| RS3 | 1"×1 " | 12.4 | 405×215×230 |
| RS4 | 1"×1 " | 13.4 | 430×215×230 |
| RS5 | 1"×1 " | 14.7 | 455×215×230 |
