Suitable for use in civil and agricultural applications.
The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Max.Working pressure 3.5 bar
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 8m
Continuous duty
Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Motor shaft: Carbon steel, AISI304 SS if request
Mechanical seal: SIC/Graphite
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
| Performance Parameters | |||||||||||||||||||
| Model | INPUT POWER | Q(m³/h) | 0 | 3 | 6 | 9 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 60 | 72 | 84 | 96 | ||
| kW | HP | Q(L/min) | 0 | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | 1400 | 1600 | ||
| GA1A | 0.75 | 1.0 | H(m) | 20 | 18 | 16 | 14 | 12 | - | - | - | - | - | - | - | - | - | - | |
| HF5B | 0.75 | 1.0 | 14 | 13.5 | 13 | 12 | 11.5 | 10.5 | 8 | 5 | - | - | - | - | - | - | - | ||
| HF5A | 1.1 | 1.5 | 15 | 14 | 13.5 | 13 | 12 | 11 | 9.2 | 6.5 | 3 | - | - | - | - | - | - | ||
| HF5AM | 1.5 | 2.0 | 22 | 21 | 20 | 18 | 16.5 | 15 | 14 | 10 | 7 | - | - | - | - | - | - | ||
| HF6C | 1.1 | 1.5 | - | 12 | 11.7 | 11.5 | 11 | 10.7 | 10.5 | 10.2 | 9 | 8 | 6.5 | 3 | - | - | - | ||
| HF6B | 1.5 | 2.0 | - | 15 | 14.7 | 14.5 | 14.2 | 14 | 13.5 | 13 | 12 | 11 | 9.7 | 6.5 | 5 | - | - | ||
| HF6A | 2.2 | 3.0 | - | 18.5 | 18.2 | 18 | 17.5 | 17 | 16.5 | 16 | 15.3 | 15 | 13.5 | 10.5 | 6 | - | - | ||
| HF6CR | 1.1 | 1.5 | - | - | 12 | 11.5 | 11 | 10.5 | 10 | 9.5 | 9 | 8 | 6.5 | 3 | - | - | - | ||
| HF6BR | 1.5 | 2.0 | - | - | 14.5 | 14 | 13.5 | 13 | 12.5 | 12 | 11.5 | 11 | 10 | 6.5 | - | - | - | ||
| HF6AR | 2.2 | 3.0 | - | - | 8.5 | 18.3 | 18 | 17.3 | 17 | 16.5 | 16 | 15 | 13 | 10 | 6 | - | - | ||
| HF7BR | 3 | 4.0 | - | - | 22 | 21 | 20 | 18.5 | 18 | 17.5 | 17 | 16 | 15 | 12 | 8 | - | - | ||
| HF7AR | 4 | 5.0 | - | - | 24 | 23 | 22 | 21.5 | 21 | 20 | 19 | 18 | 17 | 15 | 13 | 9 | 3 | ||
| Model | INLET/OUTLET | N.W | L×W×H |
| (Inch) | (Kg) | (mm) | |
| GA1A | 1/1/2"×1/1/2" | 13.5 | 205×270×322 |
| HF5B | 2 "×2 " | 15 | 220×285×362 |
| HF5A | 2 "×2 " | 23 | 220×285×362 |
| HF5AM | 2 "×2 " | 24.5 | 252×296×417 |
| HF6C | 3 "×2 " | 26.5 | 279×355×445 |
| HF6B | 3 "×3 " | 28 | 279×355×445 |
| HF6A | 3 "×3 " | 35 | 279×355×518 |
| HF6CR | 4 "×4 " | 28.7 | 279×355×445 |
| HF6BR | 4 "×4 " | 30.2 | 279×355×445 |
| HF6AR | 4 "×4 " | 37.5 | 279×355×518 |
| HF7BR | 4 "×4 " | 40 | 279×355×519 |
| HF7AR | 4 "×4 " | 42 | 340×440×600 |

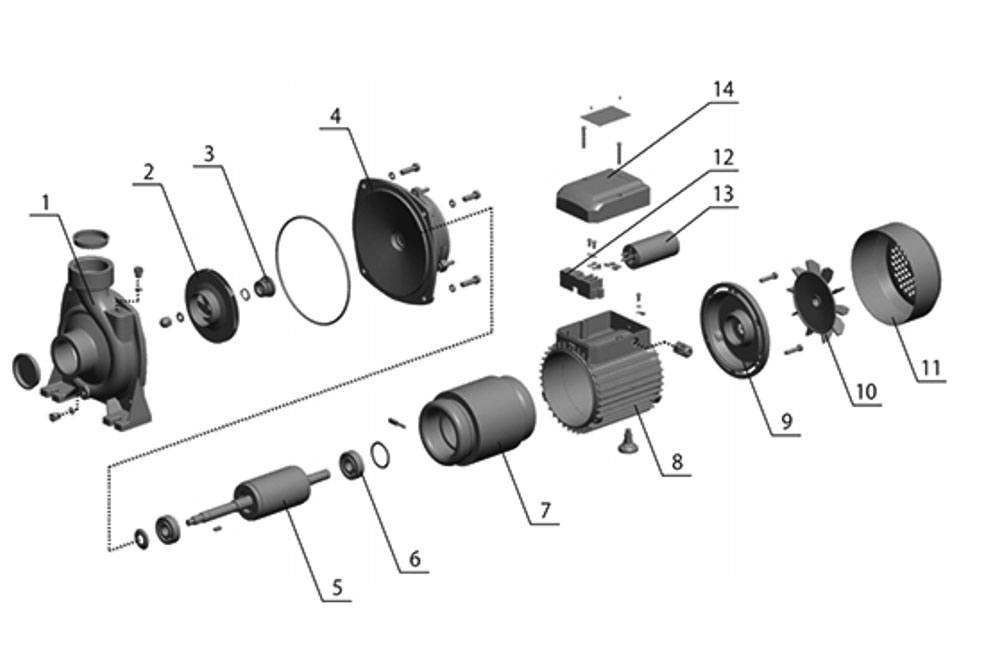

| NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Pump body | 8 | Motor case |
| 2 | lmpeller | 9 | End cover |
| 3 | Mechanical seal | 10 | Fan |
| 4 | Support | 11 | Fan cover |
| 5 | Shaft and rotor | 12 | Terminal block |
| 6 | Bearing | 13 | Capacitor |
| 7 | Stator and winding | 14 | Terminal box cover |
