Application:

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Operating Conditons:

Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 8m
Continuous duty

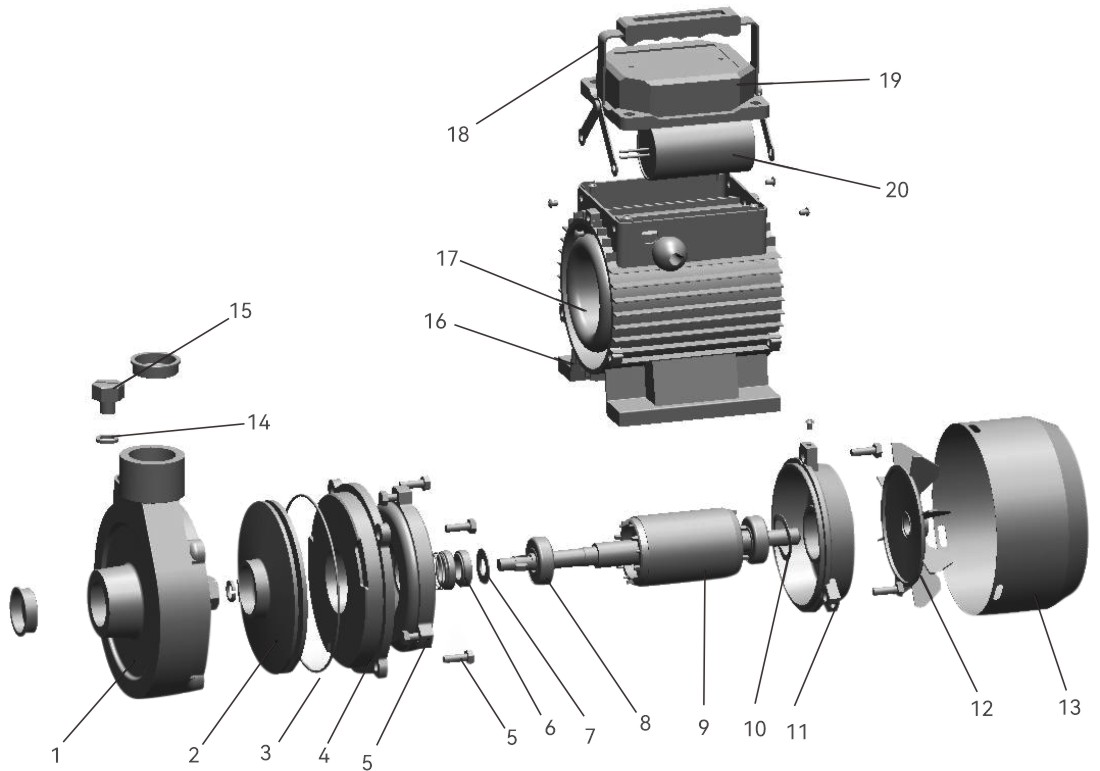

Component Construction：

Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Motor shaft: Carbon steel, AISI304 SS if request
Mechanical seal: Ceramic/Graphite (0.5HP), SIC/Graphite

Motor：

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
