Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most unusual of applications, makes the ideal for use in the domestic, civil and industrial sectors, in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fightng sets.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 8m
Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Motor shaft: Carbon steel, AISI304 SS if request
Mechanical seal: SIC/Graphite
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

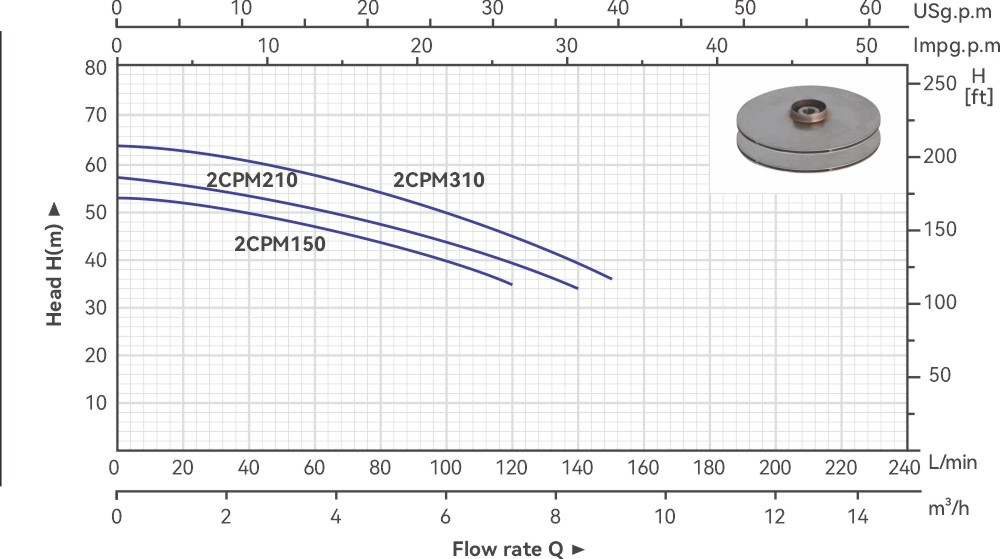

| Performance Parameters | ||||||||||||||
| Model | INPUT POWER | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.0 | |
| kW | HP | Q(L/min) | 0 | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 150 | |
| 2CPM150 | 1.1 | 1.5 | H(m) | 53 | 52.5 | 52 | 51 | 50 | 46.9 | 43.3 | 39.7 | 35 | - | - |
| 2CPM210 | 1.5 | 2 | 57.3 | 56.9 | 56 | 55.1 | 54 | 51.5 | 48.4 | 44.4 | 39.5 | 34 | - | |
| 2CPM310 | 2.2 | 3 | 64 | 63.5 | 63 | 61.9 | 60.6 | 57.7 | 54.1 | 50 | 45.4 | 39.4 | 36 | |
| Model | INLET/OUTLET | N.W | L×W×H |
| (Inch) | (Kg) | (mm) | |
| 2CPM150 | 1/1/4"x1" | 23.6 | 410×260×300 |
| 2CPM210 | 1/1/4"x1" | 24.6 | 410×260×300 |
| 2CPM310 | 1/1/4"x1" | 26 | 420×260×300 |

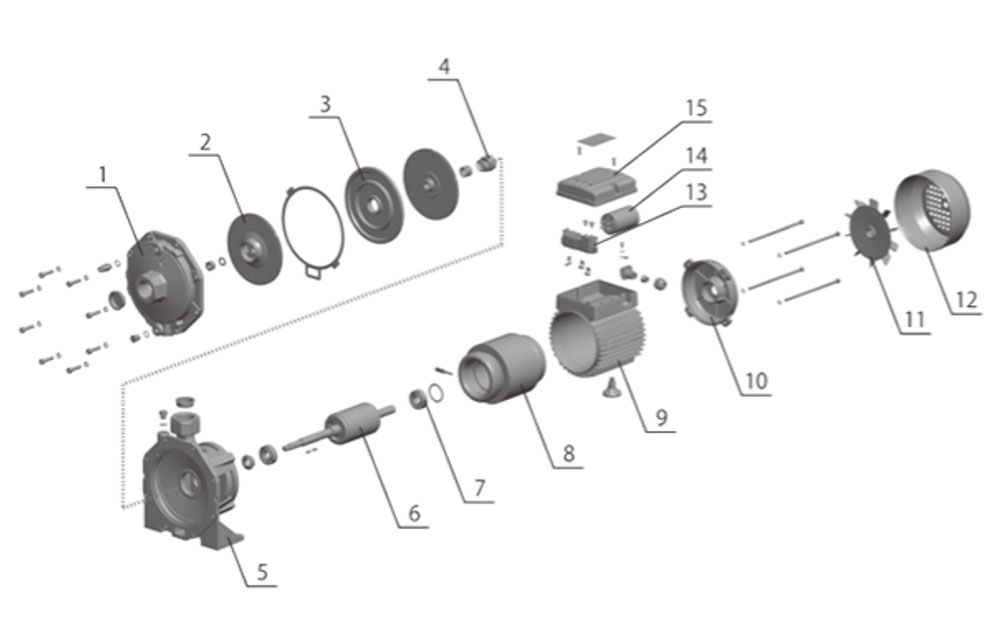

| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Pump body | 6 | Shaft and rotor | 11 | Fan |
| 2 | Impeller | 7 | Bearing | 12 | Fan cover |
| 3 | Baffle plate | 8 | Stator and winding | 13 | Terminal block |
| 4 | Mechanical seal | 9 | Motor case | 14 | Capacitor |
| 5 | Support | 10 | End cover | 15 | Terminal box cover |
