1. It is used for domestic water supply, equipment matching, pipeline pressurization, garden watering, vegetable greenhouse watering, aquaculture, industrial and mining, enterprise and high-rise building water supply and drainage, central air conditioning and central heating circulation system.
2. Transport clean water and other low-viscosity, non-corrosive liquids. Do not transport flammable, explosive and vaporized liquids and liquids that do not contain solid particles or fibers. The PH value is between 6.5-8.5.
3. The ambient temperature does not exceed +40°C.
4. Medium temperature 4~+60°C.
5. The volume ratio of solid impurities in the medium should not exceed 0.1%, and the particle size should not exceed 0.2mm.

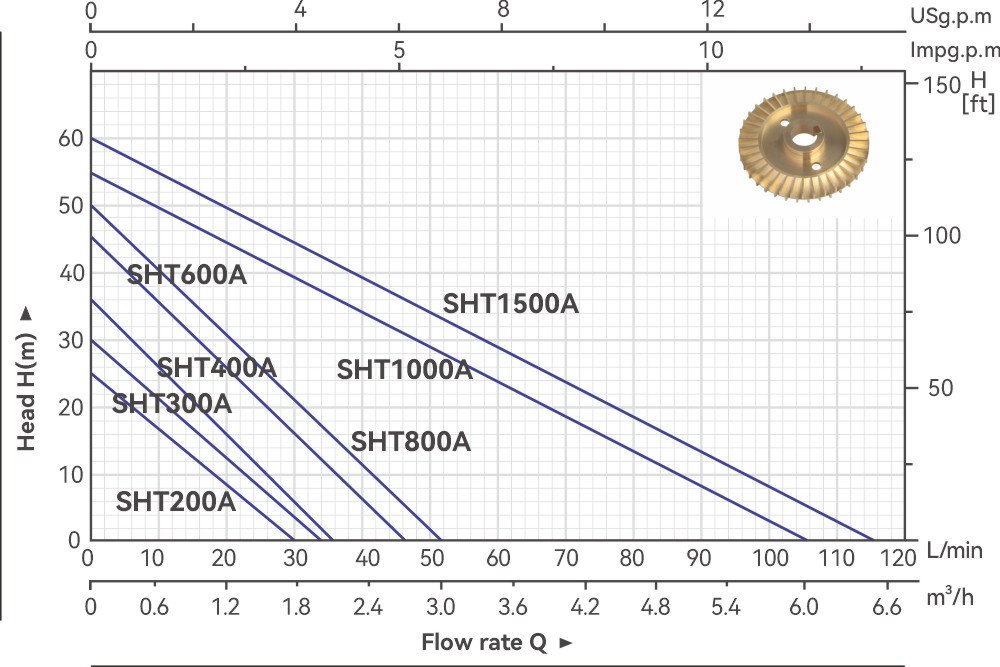

| Performance Parameters | ||||||
| Model | Power (kW) |
MAX.Flow (m³/h) |
MAX.Head (m) |
Rated Flow (m³/h) |
Rated Head (m) |
Suction （m） |
| SHT200A | 0.2 | 1.8 | 25 | 1.2 | 12 | 8 |
| SHT300A | 0.3 | 2.0 | 30 | 1.2 | 15 | 8 |
| SHT400A | 0.4 | 2.1 | 36 | 1.2 | 17 | 8 |
| SHT600A | 0.6 | 2.7 | 45 | 2.0 | 22 | 8 |
| SHT800A | 0.8 | 3.0 | 50 | 2.0 | 28 | 8 |
| SHT1100A | 1.1 | 6.0 | 55 | 3.0 | 30 | 8 |
| SHT1500A | 1.5 | 6.5 | 60 | 3.3 | 35 | 8 |
| Model | INLET/OUTLET | N.W | L×W×H |
| (Inch) | (Kg) | (mm) | |
| SHT200A | 1 "×1 " | 9.6 | 305×250×285 |
| SHT300A | 1 "×1 " | 9.6 | 305×250×285 |
| SHT400A | 1 "×1 " | 9.9 | 305×250×285 |
| SHT600A | 1 "×1 " | 13 | 330×275×315 |
| SHT800A | 1.5 "×1.5 " | 13.9 | 330×275×315 |
| SHT1100A | 1.5 "×1.5 " | 21.1 | 270×370×360 |
| SHT1500A | 1.5 "×1.5 " | 22.4 | 270×370×360 |
