For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
The maximum deep it is allowed in water is 5m from its center of impeller.
The trans medium's temperature shouldn't be high than 40°C.
Trans medium's PH: 4~10.
Kinematics viscosity of the trans medium is: 7x10-7~23x10-6m2/s.
Density of the trans medium Limit: 1.2x103kg/m3.
Two-pole induction motor(n=2850 r.p.m) Insulation Class B
Protection Ip68 Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

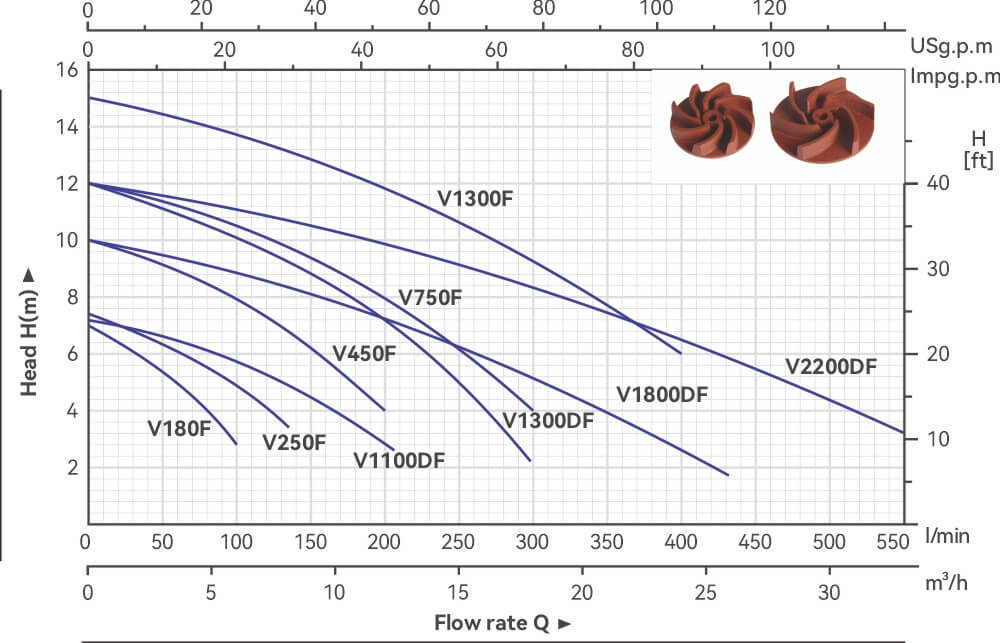

| Performance Parameters | |||||||||||||||
| Model | INPUT POWER | Q(m³/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | |
| kW | HP | Q(L/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | |
| V180F | 0.18 | 0.24 | H(m) | 7 | 6.7 | 6.2 | 5.4 | 4.3 | 2.8 | - | - | - | - | ||
| V250F | 0.25 | 0.33 | 12 | 10.6 | 10 | 8.3 | 6.5 | 4.4 | 2 | - | - | - | - | - | |
| V450F | 0.45 | 0.6 | 10 | 9.5 | 8.8 | 8 | 7 | 5.9 | 4.8 | 3.5 | 2.2 | - | - | - | |
| V750F | 0.75 | 1 | 12 | 11.5 | 11 | 10.5 | 10 | 9.5 | 8.5 | 8 | 7 | 6 | 4.5 | 3 | |
| V1300F | 1.5 | 2 | 26 | 24.1 | 21.8 | 20.9 | 19.5 | 17.3 | 11.6 | 6.1 | - | - | - | - | |
| V1100DF | 1.1 | 1.5 | 10 | 9.6 | 8.7 | 7.5 | 6.8 | 5.9 | 5.6 | - | - | - | - | - | |
| V1300DF | 1.3 | 1.75 | 14 | 13.3 | 12.8 | 11.2 | 10.6 | 9.4 | 8.1 | 6.5 | - | - | - | - | |
| V1800DF | 1.8 | 2.5 | 16 | 15.1 | 14.7 | 13.5 | 12.7 | 11.2 | 10.3 | 8.6 | 6.3 | - | - | - | |
| V2200DF | 2.2 | 3 | 20.6 | 18.3 | 16.1 | 14.1 | 13.2 | 12.6 | 11.7 | 10.9 | 9.9 | 8.2 | 7.4 | 6.5 | |
| Model | INLET/OUTLET | N.W | L×W×H |
| (Inch) | (Kg) | (mm) | |
| V180F | 1.5 " | 9.0 | 185×180×365 |
| V250F | 1.5 " | 9.5 | 185×180×385 |
| V450F | 2 " | 17.5 | 255×195×495 |
| V750F | 2 " | 22.0 | 255×195×535 |
| V1300F | 2 " | 25.0 | 255×195×535 |
| V1100DF | 2 " | 24.0 | 275×225×560 |
| V1300DF | 2 " | 25.5 | 565×305×245 |
| V1800DF | 2 " | 32.5 | 590×355×250 |
| V2200DF | 2 " | 34.5 | 590×355×250 |
