Permanent magnet variable frequency household pump
LOADING IMAGES
Product Description
Technical data

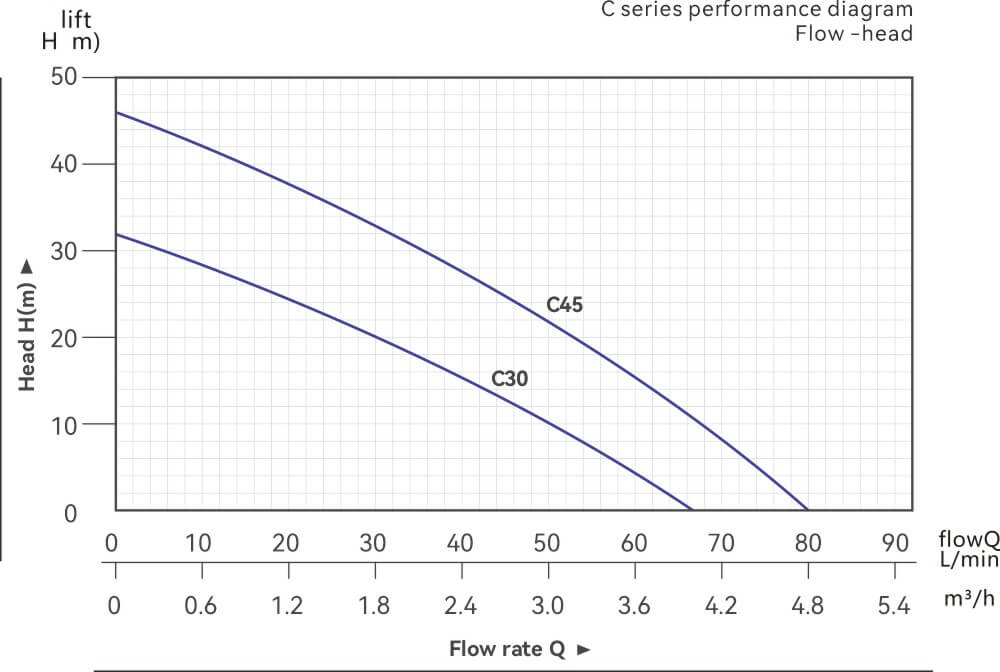

Performance Curve
Material Description

Application:

C series permanent magnet variable frequency domestic pump is automatically adjusted with the change of load to meet the constant pressure of multiple taps. High efficiency permanent magnet motor and multi-stage self-priming centrifugal technology are adopted. The water supply of the whole machine is more than 30% less than that of asynchronous motor with the same power. Unique fluid noise reduction technology, efficient silent permanent magnet motor technology. The working noise of the pump is greatly reduced to a minimum of 25-40 dB, less than 45 dB at full power, about 60% of the noise is reduced, and the use is more quiet and comfortable

Performance Parameters
Model Voltage
(v)
MAX.Flow
(m³/h)
MAX.Head
(m)
Rated Flow
(m³/h)
Rated Head
(m)
Rated Head
(m)
Suction
(m)
C30 160~260V
50/60Hz
0.3 4.0 30 1.5 20 6
C45 0.5 4.8 45 2 27 8
