It applicable to equip the home boiler, gas-fired boiler, household central air-condition ,electric water heater, solar water heater , underground heat as hot water circulation and pressurization system.
Also suitable for the urban apartment, such diferent fields as the liquid circulation ,boiler solar energy suplied water in pressurization and hot water circulation ,cooling system and house water supplying.
Fluld temperature rang: -10°C-+110°C
Maximum ambient temperature: 40°C
Manual 3-spoed control.
| Performance Parameters | |||||||
| Model | Power (kW) |
Max.Flow (m³/h) |
Max.Head (m) |
Caliber | Gross Weight (kg) |

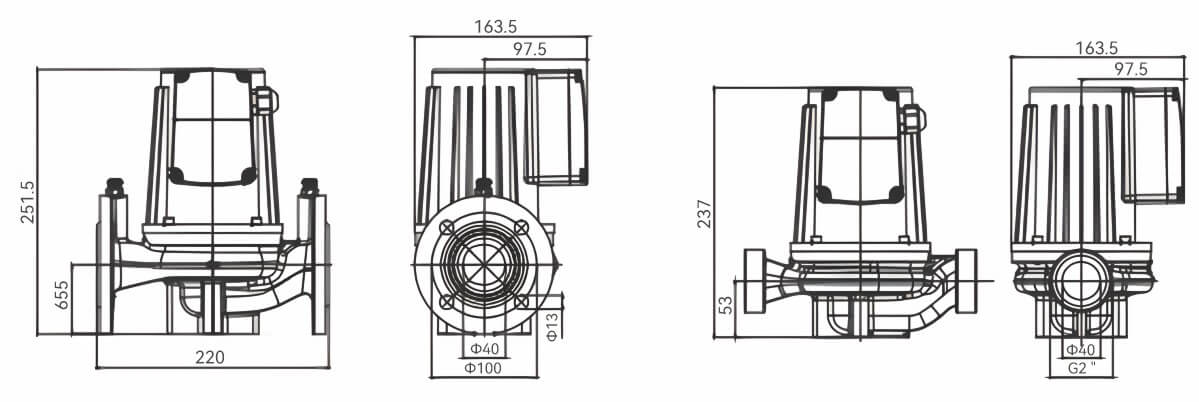

Size (mm) |
PCS/CTN |
| KPS15-6 | 0.12 | 2.2 | 4 | 2/3'' | 2 | 150×127×139 | 8 |
| KPS25-6 | 2.2 | 4 | 1'' | 2 | 150×127×139 | 8 | |
| KPS32-6 | 2.2 | 4 | 1.2'' | 2.1 | 150×127×139 | 8 | |
| KPS40-6 | 2.2 | 4 | 1.5'' | 2.1 | 150×127×139 | 8 | |
| KPS50-6 | 2.2 | 4 | 2'' | 2.1 | 150×127×139 | 8 | |
| KPS25-9 | 0.28 | 3 | 8 | 1'' | 3.5 | 185×155×177 | 4 |
| KPS32-9 | 3 | 8 | 1.2'' | 3.6 | 185×155×177 | 4 | |
| KPS40-9 | 3 | 8 | 1.5'' | 3.6 | 185×155×177 | 4 | |
| KPS50-9 | 3 | 8 | 2'' | 3.7 | 185×155×177 | 4 | |
| KPS25-10 | 0.32 | 4.5 | 8.5 | 1'' | 4.3 | 200×150×200 | 4 |
| KPS32-10 | 4.5 | 8.5 | 1.2'' | 4.3 | 200×150×200 | 4 | |
| KPS40-10 | 4.5 | 8.5 | 1.5'' | 4.3 | 200×150×200 | 4 | |
| KPS50-10 | 4.5 | 8.5 | 2'' | 4.4 | 200×150×200 | 4 | |
| KPSF-370 | 0.37 | 5.5 | 9 | 1.5'' | 7 | 233×208×305 | 1 |
| KPS-370 | 0.37 | 5.5 | 9 | 2'' | 8.7 | 233×208×305 | 1 |
| KPSF-550 | 0.55 | 7 | 11 | 1.5'' | 7.8 | 233×208×305 | 1 |
| KPS-550 | 0.55 | 7 | 11 | 2'' | 11.6 | 233×208×305 | 1 |
| KPSF-750 | 0.75 | 11 | 15 | 1.5'' | 12.3 | 266×240×345 | 1 |
| KPS-750 | 0.75 | 11 | 15 | 2'' | 16 | 266×240×345 | 1 |
| KPSF-1100 | 1.1 | 11 | 17 | 2'' | 13.1 | 288×240×367 | 1 |
| KPS-1100 | 1.1 | 11 | 17 | 2'' | 19.6 | 266×240×345 | 1 |
| KPSF-1500 | 1.5 | 20 | 14 | 2'' | 23 | 288×240×367 | 1 |
| KPSF-2200 | 2.2 | 23 | 17 | 2.5'' | 16 | 330×250×355 | 1 |
